Ball Screw

MC

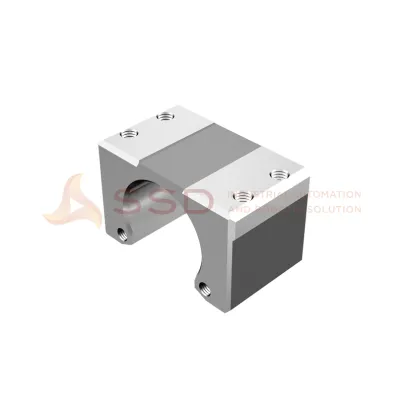

Nut Bracket Model MC untuk BNK1004 to BNK2020

Nut bracket telah terstandard untuk standard Ball Screw assembly yang disediakan dengan finished shaft ends. Model ini didesain agar terjaga secara langsung pada meja menggunakan baut. Karena tingginya yang rendah, Nut Bracket ini dapat dipasang di atas meja menggunakan baut.

MC 1004
Width: 48 mm
Overall Length: 32 mm
K: 32.5 mm
D: 26.4 mm
For factory automation equipment Supported Ball Screw models: BNK1004,BNK1010

MC 1205
Width: 60 mm
Overall Length: 36 mm
K: 37 mm
D: 30.4 mm
For factory automation equipment Supported Ball Screw models: BNK1205

MC 1408
Width: 60 mm
Overall Length: 36 mm
K: 37 mm
D: 34.4 mm
For factory automation equipment Supported Ball Screw models: BNK1408,BNK1510,BNK1520,BNK1616

MC 2010
Width: 86 mm
Overall Length: 50 mm
K: 54 mm
D: 46.4 mm
For factory automation equipment Supported Ball Screw models: BNK2010

MC 2020
Width: 86 mm
Overall Length: 40 mm
K: 51 mm
D: 39.4 mm
For factory automation equipment Supported Ball Screw models: BNK2020
