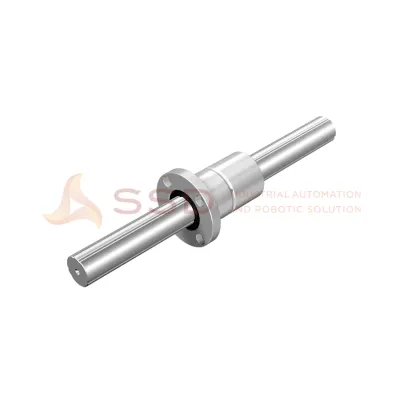

Ball Spline THK - Medium Torque LF
Ball Spline

THK - Medium Torque LF

Medium Torque

Ball Spline merupakan rolling guide spline bearing. Ball Spline ini merupakan produk inovatif dengan ball rolling pada groove yang terhubung dengan shaft, realizing allowable loads lebih baik dengan menggunakan linear bushing dan memungkinkan torque transmission selama membuat pergeseran linear.

Ball Spline ini memiliki kapasitas beban besar dalam arah radial dan torsi karena poros spline memiliki 2 hingga 3 puncak pada keliling, masing-masing dipegang oleh 2 baris (4 atau 6 baris total) dari bola di bawah beban untuk memberikan sebuah preload.

Model number
LT, LF.

LF
Spline nut dapat dilekatkan ke perumahan melalui flens, membuat perakitan menjadi sederhana.
Ini optimal untuk lokasi di mana perumahan dapat berubah bentuk jika jalan pintas dikerjakan di permukaannya, dan di mana lebar perumahan kecil.
Karena memungkinkan pin dowel untuk didorong ke flange, backlash angular yang terjadi di pas dapat sepenuhnya dihilangkan.

LF 6
Spline Nut Outer diameter: 14 mm
Spline Nut Diameter Tolerance : –0.011 mm
Spline Nut Length: 25 mm
Spline Nut Length Tolerance: –0.2 mm
Flange diameter: 30 mm
Basic torque rating Dynamic rating: 0.98 N-m
Basic torque rating Static rating: 1.96 N-m
Radial Dynamic rating: 1.18 kN
Radial Static rating: 2.16 kN
Static permissible moment MA.4. 2: 4.9 N-m
Static permissible moment MA.4. 3: 36.3 N-m

LF 8
Spline Nut Outer diameter: 16 mm
Spline Nut Diameter Tolerance : –0.011 mm
Spline Nut Length: 25 mm
Spline Nut Length Tolerance: –0.2 mm
Flange diameter: 32 mm
Basic torque rating Dynamic rating: 1.96 N-m
Basic torque rating Static rating: 2.94 N-m
Radial Dynamic rating: 1.47 kN
Radial Static rating: 2.55 kN
Static permissible moment MA.4. 3: 5.9 N-m
Static permissible moment MA.4. 4: 44.1 N-m

LF 10
Spline Nut Outer diameter: 21 mm
Spline Nut Diameter Tolerance : –0.013 mm
Spline Nut Length: 33 mm
Spline Nut Length Tolerance: –0.2 mm
Flange diameter: 42 mm
Basic torque rating Dynamic rating: 3.92 N-m
Basic torque rating Static rating: 7.84 N-m
Radial Dynamic rating: 2.84 kN
Radial Static rating: 4.9 kN
Static permissible moment MA.4. 4: 15.7 N-m
Static permissible moment MA.4. 5: 98 N-m

LF 13
Spline Nut Outer diameter: 24 mm
Spline Nut Diameter Tolerance : –0.013 mm
Spline Nut Length: 36 mm
Spline Nut Length Tolerance: –0.2 mm
Flange diameter: 44 mm
Basic torque rating Dynamic rating: 5.88 N-m
Basic torque rating Static rating: 10.8 N-m
Radial Dynamic rating: 3.53 kN
Radial Static rating: 5.78 kN
Static permissible moment MA.4. 5: 19.6 N-m
Static permissible moment MA.4. 6: 138 N-m

LF 16
Spline Nut Outer diameter: 31 mm
Spline Nut Diameter Tolerance : –0.013 mm
Spline Nut Length: 50 mm
Spline Nut Length Tolerance: –0.2 mm
Flange diameter: 51 mm
Basic torque rating Dynamic rating: 31.4 N-m
Basic torque rating Static rating: 34.3 N-m
Radial Dynamic rating: 7.06 kN
Radial Static rating: 12.6 kN
Static permissible moment MA.4. 6: 67.6 N-m
Static permissible moment MA.4. 7: 393 N-m

LF 20
Spline Nut Outer diameter: 35 mm
Spline Nut Diameter Tolerance : –0.016 mm
Spline Nut Length: 63 mm
Spline Nut Length Tolerance: –0.2 mm
Flange diameter: 58 mm
Basic torque rating Dynamic rating: 56.9 N-m
Basic torque rating Static rating: 55.9 N-m
Radial Dynamic rating: 10.2 kN
Radial Static rating: 17.8 kN
Static permissible moment MA.4. 7: 118 N-m
Static permissible moment MA.4. 8: 700 N-m

LF 25
Spline Nut Outer diameter: 42 mm
Spline Nut Diameter Tolerance : –0.016 mm
Spline Nut Length: 71 mm
Spline Nut Length Tolerance: –0.3 mm
Flange diameter: 65 mm
Basic torque rating Dynamic rating: 105 N-m
Basic torque rating Static rating: 103 N-m
Radial Dynamic rating: 15.2 kN
Radial Static rating: 25.8 kN
Static permissible moment MA.4. 8: 210 N-m
Static permissible moment MA.4. 9: 1140 N-m

LF 30
Spline Nut Outer diameter: 47 mm
Spline Nut Diameter Tolerance : –0.016 mm
Spline Nut Length: 80 mm
Spline Nut Length Tolerance: –0.3 mm
Flange diameter: 75 mm
Basic torque rating Dynamic rating: 171 N-m
Basic torque rating Static rating: 148 N-m
Radial Dynamic rating: 20.5 kN
Radial Static rating: 34 kN
Static permissible moment MA.4. 9: 290 N-m
Static permissible moment MA.4. 10: 1710 N-m

LF 40
Spline Nut Outer diameter: 64 mm
Spline Nut Diameter Tolerance : –0.019 mm
Spline Nut Length: 100 mm
Spline Nut Length Tolerance: –0.3 mm
Flange diameter: 100 mm
Basic torque rating Dynamic rating: 419 N-m
Basic torque rating Static rating: 377 N-m
Radial Dynamic rating: 37.8 kN
Radial Static rating: 60.5 kN
Static permissible moment MA.4. 10: 687 N-m
Static permissible moment MA.4. 11: 3760 N-m

LF 50
Spline Nut Outer diameter: 80 mm
Spline Nut Diameter Tolerance : –0.019 mm
Spline Nut Length: 125 mm
Spline Nut Length Tolerance: –0.3 mm
Flange diameter: 124 mm
Basic torque rating Dynamic rating: 842 N-m
Basic torque rating Static rating: 769 N-m
Radial Dynamic rating: 60.9 kN
Radial Static rating: 94.5 kN
Static permissible moment MA.4. 11: 1340 N-m
Static permissible moment MA.4. 12: 7350 N-m
