Ball Spline THK - Spline Nut DPM Series
Ball Spline

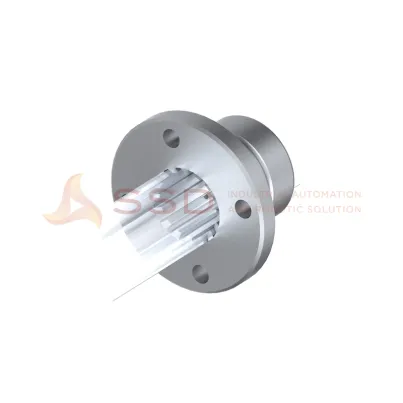

THK - Spline Nut DPM Series

Since the spline shaft’s surface is provided with a mirror finish, smooth slide is achieved. In addition, the large contact area and the concentricity, which enables the center to be automatically determined as a torque is applied, allow the product to demonstrate stable torque transmission.

Features of this product are:
- easy installation
- No angular backlash
- High rigidity
- Compact design

Specification:
DPM 1220
Outer Diameter: 22 mm
Outer Diameter Tolerance: 0 mm atau –0.052 mm
Outer Length: 20 mm
Flange diameter: 44 mm
Spline Shaft Model No: SS 12
Spline Major Diameter: 12.8 mm
Dynamic permissible torque: 17.6 N-m

DPM 1230
Outer Diameter: 22 mm
Outer Diameter Tolerance: 0 mm atau –0.052 mm
Outer Length: 30 mm
Flange diameter: 44 mm
Spline Shaft Model No: SS 12
Spline Major Diameter: 12.8 mm
Dynamic permissible torque: 26.5 N-m

DPM 1520
Outer Diameter: 22 mm
Outer Diameter Tolerance: 0 mm atau –0.052 mm
Outer Length: 20 mm
Flange diameter: 44 mm
Spline Shaft Model No: SS 15
Spline Major Diameter: 16.1 mm
Dynamic permissible torque: 30.4 N-m

DPM 1530
Outer Diameter: 22 mm
Outer Diameter Tolerance: 0 mm atau –0.052 mm
Outer Length: 30 mm
Flange diameter: 44 mm
Spline Shaft Model No: SS 15
Spline Major Diameter: 16.1 mm
Dynamic permissible torque: 46.1 N-m

DPM 1723
Outer Diameter: 28 mm
Outer Diameter Tolerance: 0 mm atau –0.052 mm
Outer Length: 23 mm
Flange diameter: 51 mm
Spline Shaft Model No: SS 17
Spline Major Diameter: 18.2 mm
Dynamic permissible torque: 43.1 N-m

DPM 1735
Outer Diameter: 28 mm
Outer Diameter Tolerance: 0 mm atau –0.052 mm
Outer Length: 35 mm
Flange diameter: 51 mm
Spline Shaft Model No: SS 17
Spline Major Diameter: 18.2 mm
Dynamic permissible torque: 65.7 N-m

DPM 2028
Outer Diameter: 32 mm
Outer Diameter Tolerance: 0 mm atau –0.062 mm
Outer Length: 28 mm
Flange diameter: 56 mm
Spline Shaft Model No: SS 20
Spline Major Diameter: 21.5 mm
Dynamic permissible torque: 70.6 N-m

DPM 2040
Outer Diameter: 32 mm
Outer Diameter Tolerance: 0 mm atau –0.062 mm
Outer Length: 40 mm
Flange diameter: 56 mm
Spline Shaft Model No: SS 20
Spline Major Diameter: 21.5 mm
Dynamic permissible torque: 100 N-m

DPM 2536
Outer Diameter: 36 mm
Outer Diameter Tolerance: 0 mm atau –0.062 mm
Outer Length: 36 mm
Flange diameter: 61 mm
Spline Shaft Model No: SS 25
Spline Major Diameter: 26.9 mm
Dynamic permissible torque: 152 N-m

DPM 2550
Outer Diameter: 36 mm
Outer Diameter Tolerance: 0 mm atau –0.062 mm
Outer Length: 50 mm
Flange diameter: 61 mm
Spline Shaft Model No: SS 25
Spline Major Diameter: 26.9 mm
Dynamic permissible torque: 211 N-m

DPM 3040
Outer Diameter: 44 mm
Outer Diameter Tolerance: 0 mm atau –0.062 mm
Outer Length: 40 mm
Flange diameter: 76 mm
Spline Shaft Model No: SS 30
Spline Major Diameter: 31.8 mm
Dynamic permissible torque: 212 N-m

DPM 3056
Outer Diameter: 44 mm
Outer Diameter Tolerance: 0 mm atau –0.062 mm
Outer Length: 56 mm
Flange diameter: 76 mm
Spline Shaft Model No: SS 30
Spline Major Diameter: 31.8 mm
Dynamic permissible torque: 297 N-m

DPM 3544
Outer Diameter: 52 mm
Outer Diameter Tolerance: 0 mm atau –0.074 mm
Outer Length: 44 mm
Flange diameter: 84 mm
Spline Shaft Model No: SS 35
Spline Major Diameter: 37.1 mm
Dynamic permissible torque: 325 N-m

DPM 3560
Outer Diameter: 52 mm
Outer Diameter Tolerance: 0 mm atau –0.074 mm
Outer Length: 60 mm
Flange diameter: 84 mm
Spline Shaft Model No: SS 35
Spline Major Diameter: 37.1 mm
Dynamic permissible torque: 443 N-m

DPM 4050
Outer Diameter: 58 mm
Outer Diameter Tolerance: 0 mm atau –0.074 mm
Outer Length: 50 mm
Flange diameter: 98 mm
Spline Shaft Model No: SS 40
Spline Major Diameter: 42.4 mm
Dynamic permissible torque: 480 N-m

DPM 4068
Outer Diameter: 58 mm
Outer Diameter Tolerance: 0 mm atau –0.074 mm
Outer Length: 68 mm
Flange diameter: 98 mm
Spline Shaft Model No: SS 40
Spline Major Diameter: 42.4 mm
Dynamic permissible torque: 673 N-m

DPM 4555
Outer Diameter: 64 mm
Outer Diameter Tolerance: 0 mm atau –0.074 mm
Outer Length: 55 mm
Flange diameter: 104 mm
Spline Shaft Model No: SS 45
Spline Major Diameter: 47.7 mm
Dynamic permissible torque: 680 N-m

DPM 4575
Outer Diameter: 64 mm
Outer Diameter Tolerance: 0 mm atau –0.074 mm
Outer Length: 75 mm
Flange diameter: 104 mm
Spline Shaft Model No: SS 45
Spline Major Diameter: 47.7 mm
Dynamic permissible torque: 927 N-m

DPM 5060
Outer Diameter: 68 mm
Outer Diameter Tolerance: 0 mm atau –0.074 mm
Outer Length: 60 mm
Flange diameter: 109 mm
Spline Shaft Model No: SS 50
Spline Major Diameter: 53 mm
Dynamic permissible torque: 910 N-m

DPM 5080
Outer Diameter: 68 mm
Outer Diameter Tolerance: 0 mm atau –0.074 mm
Outer Length: 80 mm
Flange diameter: 109 mm
Spline Shaft Model No: SS 50
Spline Major Diameter: 53 mm
Dynamic permissible torque: 1220 N-m
