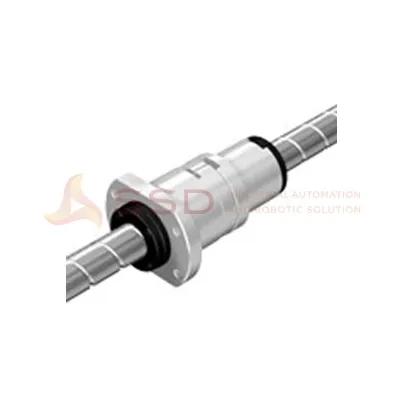

Ball Screw

BLW
Precision

Large Lead Model BLW
Karena preload disediakan melalui spacer antara dua mur timah besar, model Ball Screw ini mampu memberi umpan berkecepatan tinggi tanpa backlash.


Fitur dari produk ini adalah:
- Kombinasi berbagai diameter poros dan timah
- Jenis Stok Standar
- Standar akurasi sesuai dengan JIS

Spesifikasi:
BLW 1510-5.6
BLW 1510-5.6
Screw shaft outer diameter: 55 mm
55: Lead
Lead: 10 mm
10: Ball center-to- center diameter
Ball center-to- center diameter: 56.75 mm
56.75: Outer diameter
Outer diameter: 102 mm
102: Flange diameter
Flange diameter: 144 mm
144: Overall length
Overall length: 81 mm
81: Load Dynamic Rating
Load Dynamic Rating: 33.4 kN
33.4: Load Static Rating
Load Static Rating: 97 kN

BLW 1616-3.6
BLW 1616-3.6
Screw shaft outer diameter: 15 mm
15: Lead
Lead: 10 mm
10: Ball center-to- center diameter
Ball center-to- center diameter: 15.75 mm
15.75: Outer diameter
Outer diameter: 43 mm
43: Flange diameter
Flange diameter: 64 mm
64: Overall length
Overall length: 89 mm
89: Load Dynamic Rating
Load Dynamic Rating: 14.3 kN
14.3: Load Static Rating
Load Static Rating: 27.8 kN

BLW 2020-3.6
BLW 2020-3.6
Screw shaft outer diameter: 16 mm
16: Lead
Lead: 16 mm
16: Ball center-to- center diameter
Ball center-to- center diameter: 16.65 mm
16.65: Outer diameter
Outer diameter: 41 mm
41: Flange diameter
Flange diameter: 60 mm
60: Overall length
Overall length: 84.5 mm
84.5: Load Dynamic Rating
Load Dynamic Rating: 7.1 kN
7.1: Load Static Rating
Load Static Rating: 14.3 kN

BLW 2525-3.6
BLW 2525-3.6
Screw shaft outer diameter: 20 mm
20: Lead
Lead: 20 mm
20: Ball center-to- center diameter
Ball center-to- center diameter: 20.75 mm
20.75: Outer diameter
Outer diameter: 48 mm
48: Flange diameter
Flange diameter: 69 mm
69: Overall length
Overall length: 105 mm
105: Load Dynamic Rating
Load Dynamic Rating: 11.1 kN
11.1: Load Static Rating
Load Static Rating: 24.7 kN

BLW 3232-3.6
BLW 3232-3.6
Screw shaft outer diameter: 25 mm
25: Lead
Lead: 25 mm
25: Ball center-to- center diameter
Ball center-to- center diameter: 26 mm
26: Outer diameter
Outer diameter: 57 mm
57: Flange diameter
Flange diameter: 82 mm
82: Overall length
Overall length: 124.5 mm
124.5: Load Dynamic Rating
Load Dynamic Rating: 16.6 kN
16.6: Load Static Rating
Load Static Rating: 38.7 kN

BLW 3636-3.6
BLW 3636-3.6
Screw shaft outer diameter: 32 mm
32: Lead
Lead: 32 mm
32: Ball center-to- center diameter
Ball center-to- center diameter: 33.25 mm
33.25: Outer diameter
Outer diameter: 68 mm
68: Flange diameter
Flange diameter: 99 mm
99: Overall length
Overall length: 155 mm
155: Load Dynamic Rating
Load Dynamic Rating: 23.7 kN
23.7: Load Static Rating
Load Static Rating: 59.5 kN

BLW 4040-3.6
BLW 4040-3.6
Screw shaft outer diameter: 36 mm
36: Lead
Lead: 36 mm
36: Ball center-to- center diameter
Ball center-to- center diameter: 37.4 mm
37.4: Outer diameter
Outer diameter: 79 mm
79: Flange diameter
Flange diameter: 116 mm
116: Overall length
Overall length: 181 mm
181: Load Dynamic Rating
Load Dynamic Rating: 30.8 kN
30.8: Load Static Rating
Load Static Rating: 78 kN

BLW 5050-3.6
BLW 5050-3.6
Screw shaft outer diameter: 40 mm
40: Lead
Lead: 40 mm
40: Ball center-to- center diameter
Ball center-to- center diameter: 41.75 mm
41.75: Outer diameter
Outer diameter: 84 mm
84: Flange diameter
Flange diameter: 121 mm
121: Overall length
Overall length: 191 mm
191: Load Dynamic Rating
Load Dynamic Rating: 38.7 kN
38.7: Load Static Rating
Load Static Rating: 99.2 kN
