Controllers

Multi Panel Meter

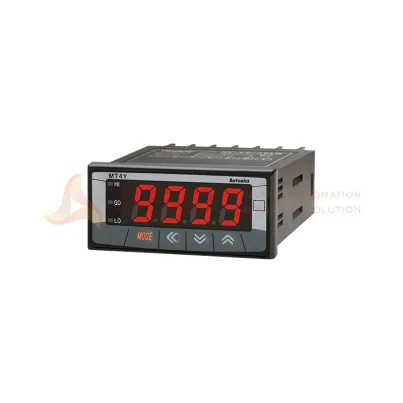

Panel meter ringkas digital seri MT4Y adalah panel meter yang tersedia dalam beragam pilihan input dan output, memungkinkan aplikasi yang fleksibel pada berbagai lingkungan. Unit ini dapat menampilkan nilai yang telah diukur di antara -1999 dan 9999, dan memiliki fitur beragam fungsi user-friendly termasuk tampilan skala high/low, pengukuran frekuensi AC, zero-point adjustment, dan fungsi skala output transmisi PV. Meter seri MT4Y memiliki ukuran DIN L 96 x T 48 mm.

Fitur Utama

- Various input/output options (by model)
*Input options : DC voltage, DC current, AC voltage, AC current
*Output options : RS485 communication output, low speed serial output, BCD dynamic output, transmission output (DC 4-20mA), NPN/PNP open collector output, relay contact output (default option : indicator/no output)
- Maximum allowed input : 500VDC, DC 5A, 500VAC, AC 5A
- Display range : -1999 to 9999
- High/low-limit display scale function
- AC frequency measurement (range : 0.1 to 9999Hz)
- Various functions : peak display value monitoring, display cycle delay, zero-point adjustment, peak display value correction, PV transmission output (DC 4-20mA) scale, etc.
- Power supply : 12-24VDC, 100-240VAC
- MT4Y : DIN W96×H48mm
- MT4W : DIN W72×H36mm
