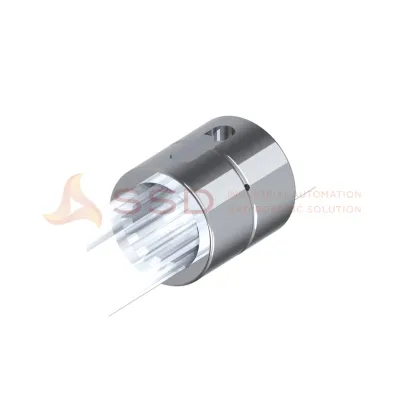

Ball Spline

Since the spline shaft’s surface is provided with a mirror finish, smooth slide is achieved. In addition, the large contact area and the concentricity, which enables the center to be automatically determined as a torque is applied, allow the product to demonstrate stable torque transmission.

Features of this product are:
- easy installation
- No angular backlash
- High rigidity
- Compact design

Specification:
DP 12
Outer Diameter: 22 mm
Outer Diameter Tolerance: 0 mm atau –0.052 mm
Outer Length: 22 mm
Flange diameter: — mm
Spline Shaft Model No: SS 12
Spline Major Diameter: 12.8 mm
Dynamic permissible torque: 19.6 N-m

DP 15
Outer Diameter: 22 mm
Outer Diameter Tolerance: 0 mm atau –0.052 mm
Outer Length: 22 mm
Flange diameter: — mm
Spline Shaft Model No: SS 15
Spline Major Diameter: 16.1 mm
Dynamic permissible torque: 33.3 N-m

DP 17
Outer Diameter: 28 mm
Outer Diameter Tolerance: 0 mm atau –0.052 mm
Outer Length: 26 mm
Flange diameter: — mm
Spline Shaft Model No: SS 17
Spline Major Diameter: 18.2 mm
Dynamic permissible torque: 48 N-m

DP 20
Outer Diameter: 32 mm
Outer Diameter Tolerance: 0 mm atau –0.062 mm
Outer Length: 31 mm
Flange diameter: — mm
Spline Shaft Model No: SS 20
Spline Major Diameter: 21.5 mm
Dynamic permissible torque: 77.5 N-m

DP 25
Outer Diameter: 36 mm
Outer Diameter Tolerance: 0 mm atau –0.062 mm
Outer Length: 40 mm
Flange diameter: — mm
Spline Shaft Model No: SS 25
Spline Major Diameter: 26.9 mm
Dynamic permissible torque: 169 N-m

DP 30
Outer Diameter: 44 mm
Outer Diameter Tolerance: 0 mm atau –0.062 mm
Outer Length: 45 mm
Flange diameter: — mm
Spline Shaft Model No: SS 30
Spline Major Diameter: 31.8 mm
Dynamic permissible torque: 238 N-m

DP 35
Outer Diameter: 52 mm
Outer Diameter Tolerance: 0 mm atau –0.074 mm
Outer Length: 49 mm
Flange diameter: — mm
Spline Shaft Model No: SS 35
Spline Major Diameter: 37.1 mm
Dynamic permissible torque: 362 N-m

DP 40
Outer Diameter: 58 mm
Outer Diameter Tolerance: 0 mm atau –0.074 mm
Outer Length: 57 mm
Flange diameter: — mm
Spline Shaft Model No: SS 40
Spline Major Diameter: 42.4 mm
Dynamic permissible torque: 547 N-m

DP 45
Outer Diameter: 64 mm
Outer Diameter Tolerance: 0 mm atau –0.074 mm
Outer Length: 62 mm
Flange diameter: — mm
Spline Shaft Model No: SS 45
Spline Major Diameter: 47.7 mm
Dynamic permissible torque: 767 N-m

DP 50
Outer Diameter: 68 mm
Outer Diameter Tolerance: 0 mm atau –0.074 mm
Outer Length: 67 mm
Flange diameter: — mm
Spline Shaft Model No: SS 50
Spline Major Diameter: 53 mm
Dynamic permissible torque: 1020 N-m
